A snapped handle at the loading dock erodes trust in your supply chain and lands your brand with customer complaints. For packaging engineers and sourcing teams, understanding how handle strength is engineered is how you pick suppliers who calculate, not guess. The measurable science explains why some handles hold 25kg without flinching while others fail under half that load. From tensile strength testing protocols to the stitching geometry that distributes stress evenly across a seam, the engineering choices made long before production determine whether a handle performs or fails in the field. Material science, structural design, and validation methods separate premium woven bag handles from the ones that quietly cut corners.

Core Engineering Principles Behind Handle Strength

Numbers tell the real story here. A handle rarely fails because the raw material is weak. It fails because a single point in the design multiplied ordinary stress into something the structure couldn’t absorb.

Stress Concentration: Geometry Beats Material

Engineers use a value called the stress concentration factor (Kt), the ratio of peak local stress to nominal stress (Kt = σmax/σnom). A stitch termination, sharp bend, or notch can multiply stress even when the average load looks perfectly safe on paper. A Kt of 2.5 means the local stress at that point is 2.5 times higher than what the nominal calculation suggests.

This is why smart handle design keeps the highest-stress zone away from stitch ends, fold edges, and anchor exits. When a discontinuity is unavoidable, engineers widen the radius, spread the load across more material, or build redundant attachment paths so nominal stress stays low enough to survive amplification.

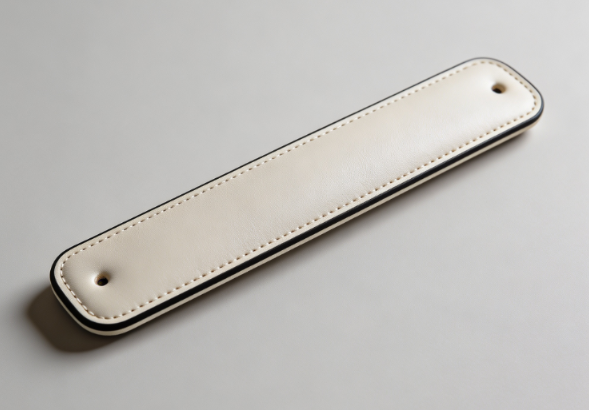

Load-Bearing Handle Design: Width and Bearing Area

Wider handles lower stress. The formula is σ = F/A. Spread the same force over a larger bearing area, and nominal stress drops. That’s why narrow straps under identical load consistently show higher failure rates at the grip and attachment zones.

Seam Reinforcement Techniques That Actually Hold

Stitching type and pattern do most of the heavy lifting. A common estimating rule: seam strength per inch ≈ stitches per inch × thread breaking strength × 1.5.

Take a real example: 8 lb thread strength at 12 SPI yields roughly 144 lb per inch of seam strength. To hit a 1,500 lb target, that model requires about 10.4 inches of stitching.

Pattern geometry matters too. Box-X and bar-tack layouts distribute load differently, and poor termination corners can concentrate stress right where you least want it. Bonded nylon and bonded polyester remain the standard high-strength thread choices, with polyester favored when UV and environmental exposure are heavier concerns.

How to Match Handle Structure to Your Load Case

No single handle spec fits every bag. The right structure depends on what you’re carrying and how many times that handle needs to survive the trip.

Industry Load Benchmarks

Standard paper shopping bags follow EN 13590:2003 for durability verification, with published ratings covering products up to 12 kg. Maine’s packaging regulations classify any bag “large or sturdy enough to carry 8 pounds or more” under stricter handle requirements. Reusable retail bags must survive at least 75 uses while carrying a minimum of 18 lb (about 8.2 kg). That benchmark aligns with most daily-use bag engineering targets of 8–10 kg (17–22 lb).

Heavy industrial FIBC bulk bags operate in a different tier. Safe working loads (SWL) run 500–4,400 lb, with 2,000–3,000 lb as the most common range. These are engineered for mechanical lifting equipment, not human hands, and apply a 5:1 safety factor. Ultimate breaking strength is designed at five times the rated SWL.

Working Backward from Load to Structure

A practical specification framework starts with actual use case load, then applies a safety multiplier:

• Target handle rating = expected real-world load × 2–5x

• Under 5 kg: single-layer handle, standard stitching. Typical retail bags.

• 5–10 kg: widened handle zone, double-layer patching, reinforced seams. Thicker paper or non-woven bags.

• 10–20+ kg: multi-layer local reinforcement, larger contact area, heavier base fabric. Approaching light industrial territory.

• Hundreds of kg: shift to FIBC logic, defined by SWL and 5:1 safety margin, not conventional handle standards.

For woven bag handle reinforcement, weave density and fabric weight scale together. Denser tape counts per square inch push load capacity higher, while sparser weaves suit lighter applications.

Reinforced Bag Handles: Key Reinforcement Techniques

Sourcing teams ask suppliers one question: what happens at the anchor point? The answer separates a handle that survives 75 lift cycles from one that tears out on the tenth trip. Here are the specific handle attachment methods engineers use when a design needs to move stress off a single seam line.

Bar Tacks and Box-X Stitching

A typical bar tack runs 1.5 cm long with 20–25 stitches packed into that space. That density matters more than the length. It spreads load across a wider zone at the exact point where tears start. Double stitching and box-X stitching patterns appear on tote and beach-bag handles because they add seam strength at the anchor, where daily-carry bags and heavier totes take the most abuse.

Interfacing and Hidden Stiffeners

Medium-weight sew-in interfacing does two jobs: it stiffens the handle so it holds shape under load, and it reinforces the anchor zone where the handle meets the shell fabric. Common material choices include Flexan, Texon, and Bontex for rigid support, plus Talyn, Rinflex, and bonded leather for flexible reinforcement. These stiffeners target handles, straps, and gussets — the weight-bearing zones most prone to tear-out.

Patch Reinforcement at the Junction

A reinforcement patch at the handle junction spreads stress across a larger contact area instead of concentrating it at the fabric edge. The patch needs to be larger than the stress zone and flexible enough to flex with the panel. Plastic die-cut handle bags use this exact approach to boost load-bearing capacity.

The Practical Sequence

For woven bag handle reinforcement, the proven order is: patch or backing layer → bar tacks or box-X stitching → internal stiffener. This widens the load path instead of funneling force through one seam.

Material Selection & Multi-Ply Construction for Tensile Performance

Fiber alignment, not raw fiber quantity, decides whether a twisted paper handle holds 10 kg or snaps at 3.

Twisted Cord Mechanics

Twisting kraft paper into a rope-like cord raises tensile strength through three mechanisms: fiber alignment, increased inter-fiber friction, and load distribution along helical paths instead of a flat strip. Kraft paper is the standard raw material here because pulping strips out most lignin, leaving long cellulose fibers that resist tearing better than short-fiber alternatives.

Twists per inch (TPI) determines cord density up to an optimal point. Too few twists means loose compaction and weak fiber engagement. Push TPI too far past optimal and gains flatten out. Standard twisted paper handles carry roughly 5–10 kg safely; grocery-grade versions rate closer to 2–6 kg, while rope handles typically run 3–8 kg.

Where Multi-Ply Construction Comes In

Cord strength rarely determines failure. The anchor/attachment point does. Tear-out at the attachment is the most common failure mode. That’s why an inner ply plus a glued reinforcement patch matters so much — it creates a composite structure that spreads stress across the grip zone instead of concentrating it at one edge. The same 1-ply versus 2-ply logic that governs general paper thickness applies directly here: more plies mean more stiffness and better tear resistance at the joint.

Stitch and Seam Material Benchmarks

For stitched load-bearing seams, packaging standards commonly specify PP fabricated yarn thread with a minimum breaking strength of 4 kgf. Woven PP fabric sets the industrial ceiling for comparison — its woven structure supports loads from 25 kg to over 1,000 kg depending on tape density and specification, with breaking strength commonly verified against IS 1969. Denser tape counts per square inch push tensile performance higher, mirroring the more load-sharing elements principle seen in twisted cord design.

The practical stack for maximum tensile performance: long-fiber kraft paper + optimized twist + adhesive bonding + reinforced attachment patch + strong stitch/joint material. Relying on cord thickness alone, without addressing the anchor point, is where most handle failures originate.

Handle Break Test Methods Validate Strength Before Shipment

Engineering calculations only predict performance. Physical testing confirms it. Before any handle ships, three verification methods close the gap between theory and field reality.

Drop-Cycle and Jerk Testing

A standard jerk protocol loads the bag to half its rated capacity, then free-falls and re-hangs it for at least 5 cycles. Any visible damage fails the test. Handbag hardware often faces tougher scrutiny under QB/T 1333, requiring 2,500 oscillation cycles without failure. For development-stage luggage handles, SATRA TM241 applies gross loading up to 120 kg and tracks damage until failure.

Pull-to-Break Testing

This destructive test simulates a hand gripping the handle and pulling until rupture. The three most important data points are peak force at failure, failure mode (webbing tear, stitch rupture, anchor pullout, or material fracture), and failure location.

Pre-Shipment QC Benchmarks

When no printed max-load specs exist, inspectors use size-based benchmarks: 9.1 kg for bags under 25 inches, 13.6 kg for 25–45 inches, and 22.7 kg above that. Bags get lifted 20 times, then held for 4 hours. Luggage handles face a 25 kg drop from 1 meter across all six sides.

A complete test report captures applied load, cycle count, peak force, drop height, failure location, and pass/fail status against target spec. That documentation separates verified suppliers from those making claims without data.

Common Handle Failure Modes and How Engineering Prevents Them

Five failure patterns show up again and again across teardown reports. Each one traces back to a specific design gap.

Seam Failure

Pinhole tearing, cracked stitch lines, and seam slippage top the list. Engineers counter this with higher-strength thread, denser stitch spacing, double or multi-line stitching, and reinforced binding tape. Testing pulls the seam to failure while recording peak force, elongation, and exact failure location — data that feeds straight back into design fixes.

Handle Strip Tearing

Cracks typically start at the handle root or fold-back point. The fix is widening the strip’s effective width, upgrading to high-strength webbing, and adding a reinforcement patch at the root. Testing checks webbing, stitching, and the junction zone separately to isolate the weakest link.

Tensile Deformation

Permanent elongation under sustained load, followed by declining capacity, signals low-modulus material. Engineers switch to low-creep fibers, thicker layers, or capped working loads. Test reports track both ultimate strength and elongation percentage together.

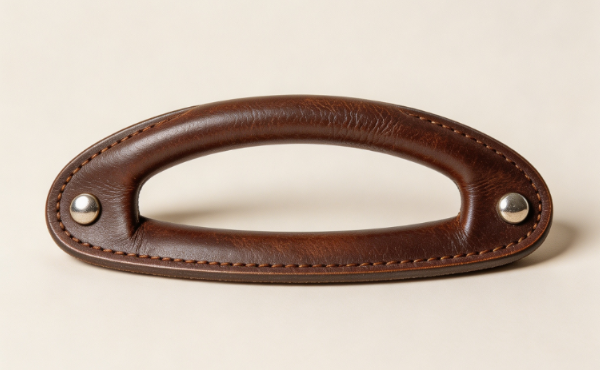

Anchor-Point Tear-Out

This happens when the connection zone shears before the fastener itself fails. The standard rule of thumb: edge margin should be at least equal to hole diameter, with a 1.5–2.0x ratio preferred for safety margin. Thicker base material and added backing plates spread the load further.

Narrow Contact-Zone Stress Concentration

A contact width that’s too narrow funnels load onto a handful of stitches or edge fibers. Widening the contact area, adding transition radii, or switching to distributed connections flattens that per-unit load back down to safe levels.

Design Priority Sequence

Sourcing teams should expect suppliers to follow this order: eliminate narrow contact zones first, upgrade materials second, add stitch density or reinforcement layers third, then validate with both tensile and fatigue testing. A design that passes static pull tests but fails cyclic loading is incomplete.

Buyer’s Checklist: What to Ask Suppliers About Handle Engineering

Documentation gaps reveal weak suppliers. Before signing off on a handle spec, request paperwork that proves the engineering.

Documents Every Supplier Should Provide

• Rated load + test conditions: test load, hold duration, cycle count, failure criteria

• Stitch specs: SPI, seam type (box-X, bar tack, double stitch), thread breaking strength with spec number

• Reinforcement layout: a load-path diagram showing how force spreads from handle to body panel

• Material BOM: fabric weight, webbing width, backing material, adhesive type. Vague terms like “canvas” or “webbing” aren’t enough.

Questions to Send

1. What’s the rated load, and what test load/duration/cycles back it up?

2. What’s the reinforcement patch size, and where does it overlap the shell fabric?

3. Do you test on finished bags under real loading, or isolated materials?

4. What exact failure counts as rejection: stitch slip, delamination, or permanent deformation?
